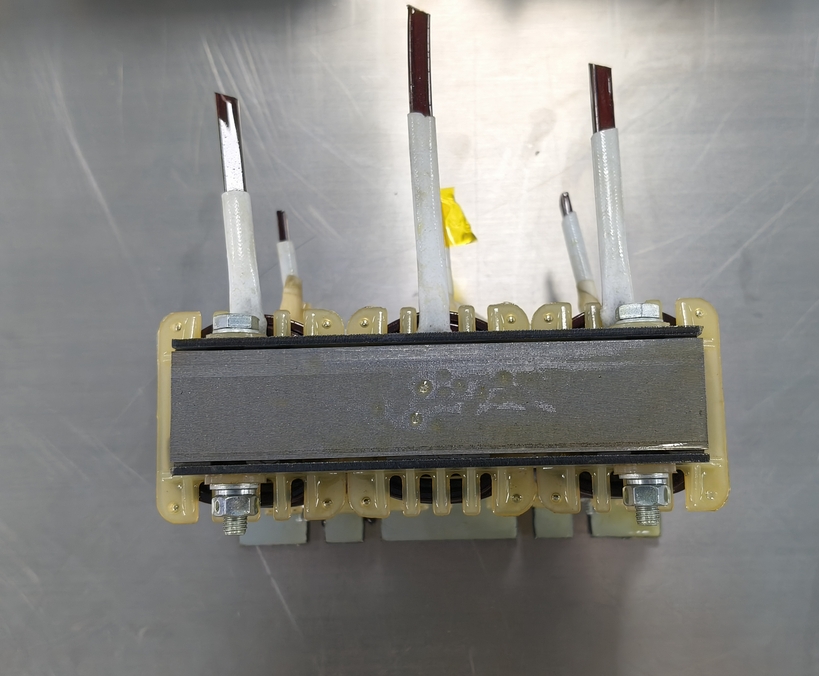

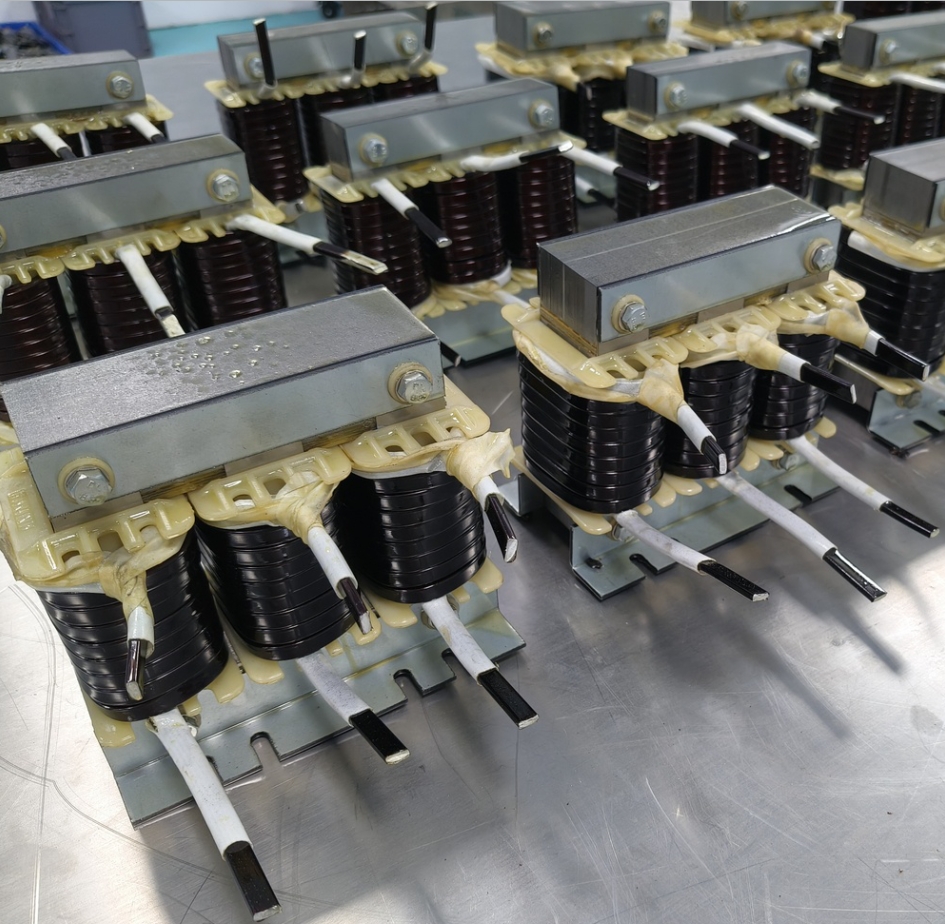

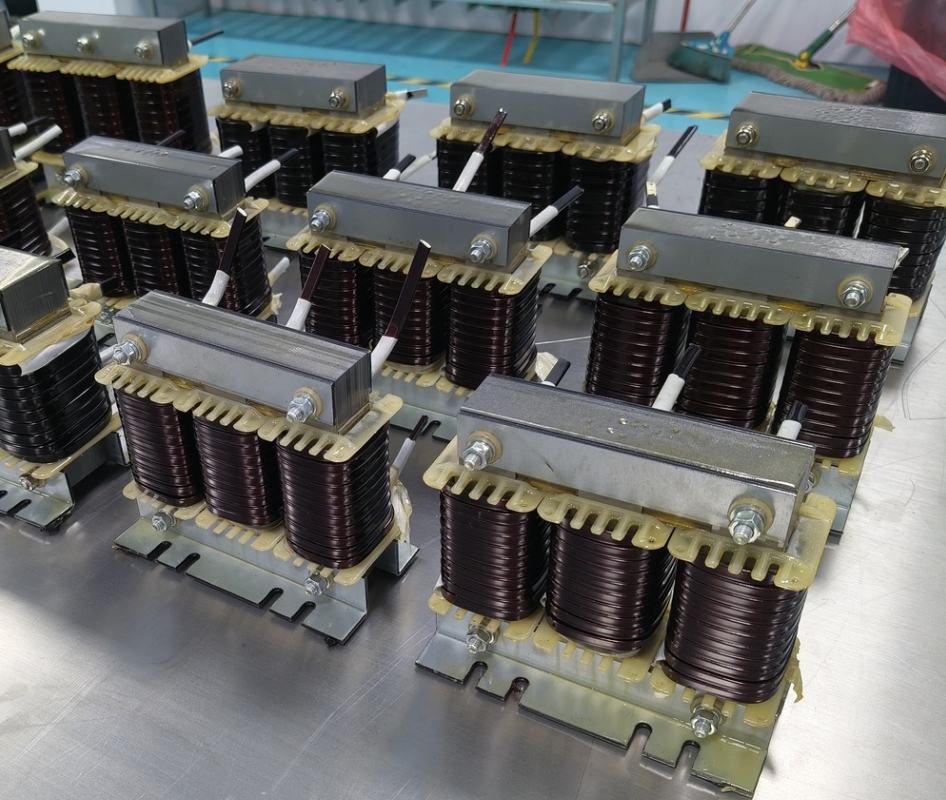

1、       产品概述(Product Introduction)

PWM逆变器直接驱动电机时会产生较高dv/dt的共模电压,并由此产生轴承电流和共模漏电流以及严重的电磁干扰(EMI).特别是当逆变器通过长线电缆与电机连接时,由于电缆中分布参数的影响,会在电机端产生电压反射现象,从而在电机端会产生2倍以上的过电压,导致线圈绝缘失败. dv/dt滤波器可以降低电机电缆传输线效应电压的增大而衰减率，并最大限度地减少在电机端子上所发生的峰值电压。

When PWM inverter drives the motor directly, it produces a high common mode voltage of dv/dt, resulting in bearing current and common mode leakage current, as well as serious electromagnetic interference (EMI). Especially when the inverter is connected to the motor through the long line cable, due to the influence of the distribution parameters in the cable, the voltage reflection phenomenon will occur at the motor end, which will produce more than 2 times the overvoltage at the motor end, resulting in coil insulation failure. dv/dt filter can reduce the attenuation rate of the increase of the transmission line effect voltage of the motor cable. And minimize the peak voltage that occurs on the motor terminals

 2、产品应用(Product Application)

dv/dt滤波器是设计用于保护电机的滤波器，由于变频器与电机之间运行电缆过长会引起对电机产生毁灭性影响峰值电压。电缆的长度取决于用在变频器中的电力半导体的开关次数和电机的大小，如果电缆短到2.5米则会导致电机承受的峰值电压超过电机绝缘系统的额定值。然而，如果电缆太长则问题更大，在这种情况下就需要用dv/dt滤波器来保护电机不受峰值电压的毁灭性影响。

The dv/dt filter is a filter designed to protect the motor, due to the length of the running cable between the inverter and the motor can cause a devastating effect on the motor peak voltage. The length of the cable depends on the number of switches of the power semiconductor used in the inverter and the size of the motor, if the cable

is short to 2.5 meters, it will cause the peak voltage of the motor to exceed the rating of the motor insulation system. However, the problem is even greater if the cable is too long, in which case dv/dt filters are needed to protect the motor from the devastating effects of peak voltages.

3、技术规格(TechnicalSpecifications)

1.最大工作电压:400V AC-1140V AC

2.额定电流:5~500A

3.频率:50-60Hz

4.开关频率:2~8KHz

5.防护等级:IP00-P20

6.绝缘等级:class F,H

7.使用环境:-10…+45 ℃,额定值不会降低。最高可达+55℃，在45℃以上，每升高1℃，额定电流降低2%

8.最大电缆长度:1000m

9.最大电流:1.5x额定电流，持续60S

10.噪音:<65dB

11.温升:<85K

12.抗电强度:铁芯-绕组 3000VAC/50Hz/5mA/10s无飞弧击穿(工厂测试)

13.绝缘电阻:1000VDC绝缘阻值≥100MΩ

14.海拔高度不超过2000米。

15.运行环境温度-25℃~+45℃，相对漫度不超过90%。

16.周围无有害气体，无易燃易爆物品。

17.周围环境应有良好的通风条件，如装在柜内，应加装通风设备。

1. Maximum operating voltage :400V AC-1140V AC

2. Rated current :5~500A

3. Frequency :50-60Hz

4. Switching frequency :2~8KHz

5. Protection level :IP00-P20

6. Insulation class :class F,H

7. Use environment :-10... +45 ℃, the rating will not be reduced. Up to +55 ° C, above 45 ° C, each increase of 1 ° C, the rated current is reduced by 2%

8. Maximum cable length :1000m

9. Maximum current :1.5x rated current, lasting 60S

10. Noise :<65dB

11. Temperature rise :<85K

12. Electrical strength: Core - winding 3000VAC/50Hz/5mA/10s no flare breakdown (factory test)

13. Insulation resistance :1000VDC insulation resistance ≥100MΩ

14. The altitude does not exceed 2000 meters.

15. The operating environment temperature is -25℃~+45℃, and the relative diffuse is not more than 90%.

16. There are no harmful gases around, no inflammable and explosive materials.

17. The surrounding environment should have good ventilation conditions. If installed in the cabinet, ventilation equipment should be installed.

4、执行标准(Applicable standards)

IEC289:1987 Reactor

GB10229-88 Reactor(eqvIEC289:1987)

JB9644-1999 Reactors used for semiconductor electrical driving

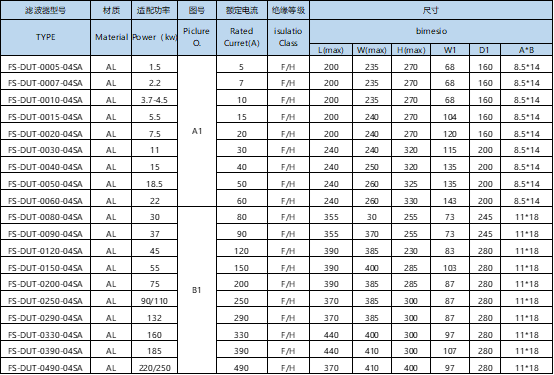

5、产品选型表（Product selection table）

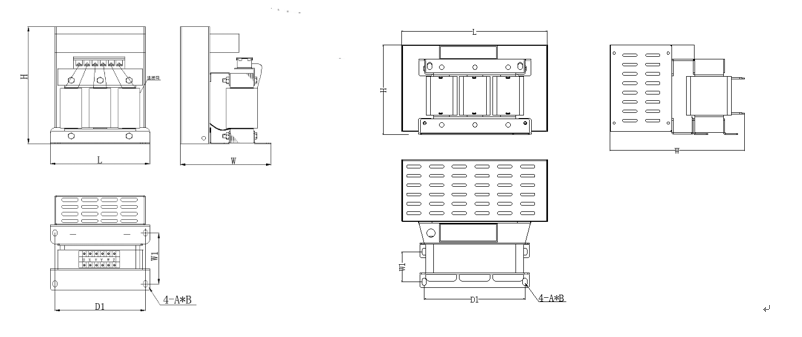

6、产品尺寸图(Product size)
